| Place of Origin : | Zhengzhou China |
| Trademark : | BOSDI |
| Minimum Order : | 5 Pcs |
| Delivery Time : | 3-5 days |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability : | 100,000 Pcs per year |
| Price : | Negotiable |
| Package : | Carton, Plastic drum/bag, Metal bucket |
1. High sharpness and strong tooth shape correction force
2. Using SG abrasive formula, the grinding wheel does not lose teeth during the gear grinding process, maintains good tooth shape, uniform organization, and sharp grinding, reducing scrap rate
3. It can machine high-precision and hardened gear surfaces to eliminate deformation caused by heat treatment.
4. Low grinding resistance, reduced burn occurrence, less grinding wheel wear, stable tooth profile and dimensional accuracy
5. Special toughness treatment of abrasive particles enhances impact resistance and shape maintenance ability
SG grinding wheel is a type of ceramic microstructure abrasive that is different from ordinary corundum. Each single abrasive particle is a microcrystalline corundum composed of more micro particles, which has high toughness and crushing structure, making the abrasive have strong retention and high wear resistance. During the grinding process, it can separate into fragmented particles and detach, resulting in new edges with good self sharpening performance, While ordinary aluminum oxide abrasive will be slowly passivated in the grinding process, making it easy to reduce the grinding ability. Therefore, SG grinding wheel not only has toughness, but also can maintain good grinding force for a long time. When grinding HRC52 to 67 steels with high hardness, such as high-speed Tool steel, bearing steel, SG is mainly used for rough grinding, with 46 #, 60 #, 80 #, 100 #, 120 #, 150 # in the majority. SG grinding wheel, due to its high abrasive cost several times higher than ordinary alumina and its weakness in high grinding resistance, is not mixed with a single SG abrasive during the grinding wheel manufacturing process. Generally, it is mixed with white or single crystal corundum in a certain proportion. Common codes include 1SG, 3SG, and 5SG.
1.Capable of machining high-precision, hardened gear surfaces to eliminate deformation caused by heat treatment.
2.Can be used for grinding ordinary carbon steel, alloy steel, stainless steel, etc
3.Internal and external cylindrical gear grinding shaft forming, grinding, generating, grinding worm, grinding bevel gear, honing gear, grinding sand wheel. At the same time, we also provide various high-precision diamond trimming tools, such as diamond rollers, trimming pens, etc., to meet the different needs of customers.

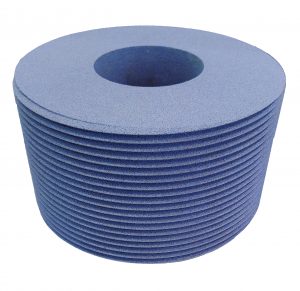

BOSDI turbine worm grinding wheel is made of high-performance SG abrasive, mixed with high-quality binder, and sintered at high temperature. Its product features include:
1. The product has excellent grinding efficiency, strong self sharpening, non clogging, and high efficiency. While improving grinding efficiency, it also improves the quality of the workpiece surface
2. The design of special pores avoids phenomena such as grinding wheel burns and workpiece discoloration, ensuring excellent uniformity and consistency of the grinding wheel.
3. Excellent lifespan, ensuring that the grinding wheel can maintain its own shape without deformation for a long time during the dressing process, greatly improving production efficiency.
4. High comprehensive performance and cost-effectiveness, suitable for different gear grinding machine models.
Specification for Threaded Worm Grinding Wheels
SG 300x125x160mm
Lead time 45 days
| Item | Size | Material | Hardness | Speed |
| BD-08875 | 300x125x160mm | SG | VS | 75m/s |
| BD-13300 | 355x150x175mm | SG | VS | 75m/s |
Other specifications can be customized according to customer requirements
