Depressed Center cutting wheel

Place of Origin Zhengzhou China
Trademark BOSDI
Minimum Order   3000 Pcs
Delivery Time 15 days
Payment Terms T/T,  Western Union, MoneyGram, Paypal
Supply Ability 10,000 tons / year
Price Nigotiable
Package Carton, Plastic drum/bag, Metal bucket
Add To Cart Successfully
OK
  • Description
  • Application
  • Product Data
  • Send Email



Product Description

Resin cut-off wheel is a kind of cutting wheel made by pressing and sintering resin liquid, glass fiber mesh and various corundum abrasives. It has the characteristics of high strength, low heat resistance, good self sharpening, large grinding force, simple manufacture, short process cycle, wide application range, etc. It is generally used on surfaces with various irregular surfaces such as curved surface, inner edge, outer edge, plane, etc


The characteristics of cut-off wheel are mainly determined by such factors as abrasive grain, grit, bond, hardness, structure, shape , size and so on.

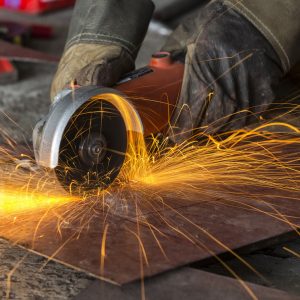

Resin cut-off wheel is a kind of cutting wheel made of resin with abrasive grain. It has the characteristics of high strength, impact resistance, good self sharpening, flexible use, convenient operation, and universal application. It is mainly used to remove paint, rust spots, welds, or burrs from metal products.


Product Application

Suitable for metal, iron, cast iron, castings, stainless steel, alloy steel, angle steel, hollow steel, deformed steel, round steel, square steel, galvanized sheet, tungsten steel, rail, box and other metal materials,



Application: aviation, automobile, ship, construction, bridge and other fields, with a wide range of applications, convenient and flexible.



Features: High quality alumina abrasive, excellent durability, suitable for all ordinary metal cutting, high safety factor of the product, and good cost-effectiveness.


Depressed Cneter Cut-off wheel





Material: A/ WA/ SA/ SG/ GC/ C/ ZA
Shape: Depressed center circular Type: T42
Item No Size (mm) Size (inch) Work Speed Pcs/Carton GW.(kg) Carton Size (cm)
BD-42WA/A1004 100×2×16 4"×1/12"×5/8" 80M/S 400 21 38×22×22
BD-42WA/A1006 100×1.2×16 4"×1/20"×5/8" 80M/S 800 21 38×22×22
BD-42WA/A1156 115×1.2×22 4.5"×1/20"×7/8" 80M/S 500 16 25×21×25
BD-42WA/A1256 125×1.2×22 5"×1/20"×7/8" 80M/S 500 17 27×21×27
BD-42WA/A1506 150×1.5×22 6"×1/18"×7/8" 80M/S 200 23 42×31×16
BD-42WA/A1806 180×1.6×22 7"×1/16"×7/8" 80M/S 120 21 38×24×19
BD-42WA/A2306 230×2.0×22 9"×1/12"×7/8" 80M/S 60 20 26×25×25
