| Place of Origin | Zhengzhou China |
| Trademark | BOSDI |
| Minimum Order | 50 Pcs |
| Delivery Time | 3-5 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability | 1,000,000 Pcs/ year |
| Price | Negotiable |
| Package | Carton, Plastic drum/bag, Pallet |
1. High precision, can be used for slotting, slitting and cutting of precision materials
2. Narrow slit can greatly improve the utilization rate of raw materials
3. High efficiency and sharp cutting
4. Strong rigidity, not easy to deform

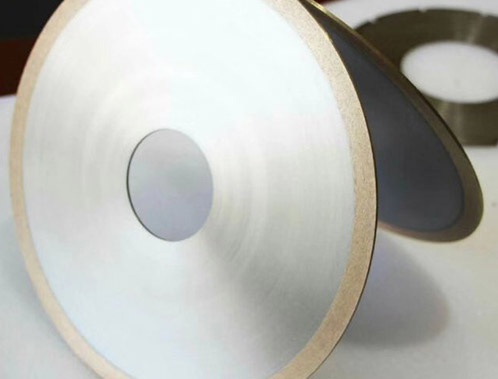

Diamond ultra-thin cutting sheet is a product made by pressing diamond powder and bond through hot press molding machine. It has the characteristics of good rigidity, strong cutting force, thin cutting seam, easy molding, wide application range, etc.
Suitable for cutting ordinary glass, quartz glass, crucible, glassware, marble sink, artificial marble, granite, ceramics, jade and other materials
Metallographic cutting of precious metals such as cemented carbide, refractory, magnetic materials, monocrystalline silicon, polycrystalline silicon, tungsten wire, titanium alloy
Grooving or cutting gap of quartz glass tube, chemical glass, optical glass, quartz glass, jade, acrylic, ceramics and other products
Applicable to stone products such as marble, granite, jade, porcelain, ceramic tile, etc
Applicable to tempered glass, chemical glass, optical glass, quartz glass, crucible glass and other glass products
It is applicable to precious metals such as cemented carbide, tungsten wire, titanium alloy, nickel alloy, manganese alloy, etc.
It is applicable to polycrystalline silicon, monocrystalline silicon, nano materials, magnetic materials, motor materials, circuit boards, etc.
It is also applicable to pearls, agates, rice beads, jade, jade bracelets, beads, pendants, necklaces and other accessories
|
Mode No. |
Out diameter |
Inner diamete |
Thickness |
|||
|
mm |
inch |
mm |
inch |
mm |
inch |
|
|
BSD-A69211 |
50 |
2” |
10 |
2/5”) |
0.3~0.8 |
1/80~1/30” |
|
BSD-A69212 |
75 |
3” |
10 |
2/5” |
0.3~0.8 |
1/80~1/30” |
|
BSD-A69213 |
100 |
4” |
10 |
5/8” |
0.4~1.0 |
1/60~1/25” |
|
BSD-A69214 |
125 |
5” |
10 |
7/8” |
0.4~1.2 |
1/60~1/20” |
|
BSD-A69215 |
150 |
6” |
10 |
7/8” |
0.4~1.2 |
1/60~1/20” |
|
BSD-A69216 |
180 |
7” |
10 |
7/8” |
0.5~1.5 |
1/50~1/17” |
|
BSD-A69217 |
200 |
8” |
10 |
7/8” |
0.5~1.6 |
1/50~1/16” |
|
BSD-A69218 |
250 |
10” |
10 |
1” |
1.0~2.0 |
1/25~1/12” |
|
BSD-A69219 |
300 |
12” |
10 |
1” |
1.5~3.0 |
1/17~1/8” |
|
BSD-A69220 |
350 |
14” |
10 |
1” |
1.8~3.5 |
1/14~1/7” |
12
