| Place of Origin | Zhengzhou China |
| Trademark | BOSDI |
| Minimum Order | 50 Pcs |
| Delivery Time | 7 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability | 500,000 Pcs/ year |
| Price | Negotiable |
| Package | Carton, Plastic bag, pallet |
Abrasive belt grinding is very safe, with low noise and dust, easy to control and good environmental benefits.
Since the sand belt itself is light, there is no danger of injury even if it breaks. Abrasive belt grinding is not as serious as grinding wheel sanding. Especially in dry grinding, the debris is mainly the material of the workpiece to be machined, which is easy to recover and control dust. Since the rubber contact wheel is used, the abrasive belt grinding will not form a rigid impact on the workpiece like the grinding wheel, so the processing noise is very small, usually<70dB. Thus, from the perspective of environmental protection, abrasive belt grinding is also very worthy of promotion.
The abrasive belt grinding process is flexible and adaptable. This is reflected in:
Abrasive belt grinding can be conveniently used for grinding plane, inner circle, outer circle and complex curved surface. A belt grinding head device is designed as a functional part, which can be installed on a lathe for post turning grinding, or installed on a planer for use. At the same time, it can be designed into a variety of special grinders. Using this characteristic of abrasive belt grinding can easily solve some difficult to machine parts, such as super long and super large shafts and precision machining of plane parts.
[Brown corundum abrasive belt] red
It is widely used in grinding and polishing of metallurgy, machinery, shipbuilding, wood, metal, nonmetal and other industries. Fast cutting, heat resistance, long service life, high wear resistance.
Automatic grinding, mechanical hand grinding, desktop grinding, manual tool grinding.
[Zirconium corundum abrasive belt] Blue
It is widely used in the grinding and polishing of steel, alloy steel, cast iron and non-ferrous metals, and in the medium load or heavy load powerful grinding. Hard polyester cloth base has strong tensile and impact resistance, high abrasion resistance and excellent comprehensive cost performance
[Silicon carbide abrasive belt] black
It is widely used in the grinding and polishing of brass, bronze, titanium alloy, aluminum alloy, glass, ceramics, porcelain, minerals, stone, rubber and synthetic materials. Sharp sand surface, very high strength and grinding ability, suitable for medium and high density plate grinding. The cloth base has strong tension and super wide belt tension, which can be used for super large abrasive belt.
[Ceramic abrasive belt] Bright red
It is widely used for grinding chrome steel, chrome nickel steel, stainless steel, high alloy steel, nickel base alloy, titanium alloy, brass and bronze, etc. It has good self sharpening, strong grinding, and large removal of grinding materials. Plane grinding, edge grinding, slight curved surface grinding, deburring.
[Stacked abrasive belt] earthy red
It is widely used to polish various non-ferrous metals such as non alloy, low alloy and high alloy steel, stainless steel, brass and bronze. Good self sharpening, long service life, uniform grinding amount and consistent surface roughness.
[Diamond abrasive belt and CBN abrasive belt]
It is mainly used for grinding and polishing hard and brittle materials such as glass, stone, ceramics, monocrystalline silicon, polycrystalline silicon, synthetic materials, hard alloy, etc.
CBN abrasive belt is mainly used for grinding and polishing iron base alloy, titanium alloy, stainless steel, superalloy, etc.
Wide abrasive belt grinding can be widely used for surface processing of steel plate, stainless steel plate, silicon steel sheet, aluminum plate, copper plate, chipboard, plywood, medium density fiberboard, leather, insulating board, ceramic plate, as well as various large plates with high precision and low roughness used in aerospace appliances, ships and nuclear physics research devices.
The long abrasive belt is used for processing the outer circle of large generator rotor, roll, paper drying cylinder and other workpieces, and the inner circle of cylinder, oil pipeline, pressure vessel and other workpieces.
In addition, the flexibility of the abrasive belt can facilitate the processing of various complex curved surfaces. The inner fillets with a radius of curvature of only 3mm can also be polished by the abrasive belt. For example, aircraft engine blades, turbine blades, navigation blades, spotlight lamp bowls, reflectors, tableware, handles, plumbing appliances, etc. can be polished with abrasive belts with high efficiency and quality.

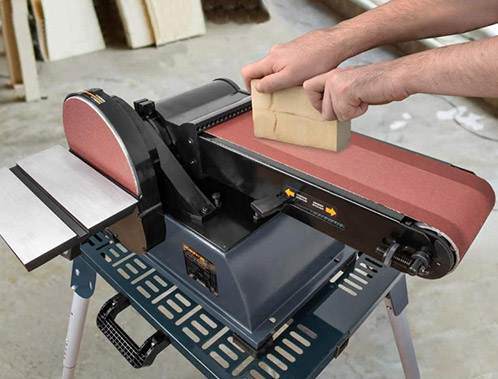

Abrasive belt grinding equipment has various forms and varieties. It can be carried out on various universal belt grinding equipment. General abrasive belt grinding equipment small portable abrasive belt machine, universal abrasive belt machine, bench type abrasive belt machine; The big ones are cylindrical abrasive belt grinder, flat abrasive belt grinder, centerless abrasive belt grinder and internal abrasive belt grinder, etc.
| Model | Width | Width | Width | Grit |
| No. | Length(mm) | 5~100mm | 100~350mm | P |
| BSD-96481 | 150 | ● | 36 | |
| BSD-96482 | 200 | ● | 40 | |
| BSD-96483 | 250 | ● | 60 | |
| BSD-96484 | 300 | ● | 80 | |
| BSD-96485 | 350 | ● | 100 | |
| BSD-96486 | 400 | ● | 120 | |
| BSD-96487 | 450 | ● | 150 | |
| BSD-96488 | 500 | ● | ● | 200 |
| BSD-96489 | 600 | ● | ● | 240 |
| BSD-96490 | 800 | ● | ● | 320 |
| BSD-96491 | 1000 | ● | ● | 400 |
| BSD-96492 | 1200 | ● | ● | 600 |
| BSD-96493 | 1500 | ● | ● | 800 |
| BSD-964494 | 2000 | ● | ● | 1000 |
| BSD-96495 | 2500 | ● | ● | 1500 |
| BSD-96496 | 3000 | ● | ● | 2000 |
| BSD-96497 | 3500 | ● | ● | 2500 |
| BSD-96498 | 4000 | ● | ● | 3000 |
| BSD-96499 | 4500 | ● | ● | 6000 |
| BSD-96500 | 5000 | ● | ● | 8000 |
