| Place of Origin : | Zhengzhou China |
| Trademark : | BOSDI |
| Minimum Order : | 5 Pcs |
| Delivery Time : | 3-5 days |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, Paypal |
| Supply Ability : | 100,000 Pcs per year |
| Price : | Negotiable |
| Package : | Carton, Plastic drum/bag, Metal bucket |

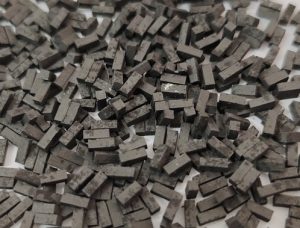

TSP is an unbacked polycrystalline diamond product. I t is thermally stable up to 1200° C for itsbinder is chemically insert and has a similar coefficient of thermal expansion like that of diamond. lt issuitable for mining bits and oil drilling bitsWith strong support of customers.
Now we are one manufacturer contains various specificationshardness, shapes (cylindrical, conical, square, triangle and other shapes) polycrystalline series, can meethe needs of customers
We use different formulations and processes to produce drill bit polycrystalline and gauge protection polycrystalline under high temperature and high pressure. It has a very high abrasive ratio and the use-cost is very low compared with natural metal and stones. It is ideal materials for geological drill bits and has been adopted by major oilfields and drill bit manufacturers at home and abroad.
3Polycrystalline Diamond is a diamond combo produced bydiamond sintered with bond under high temperature and highpressure; it has very high wearability and high thermal stability.4he polycrystalline diamonds of Sanhe Corp. include TSP Seriesfor drilling bits and PCD series for genuine diamond polished.

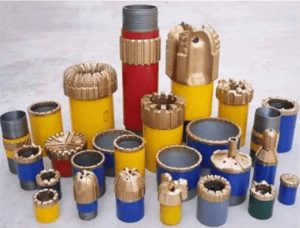

TSP diamond (thermal stable pollycrystalline) is widely applied in the manufacture of petroleum and geological drill bit , natural diamond polishing etc.
It offers exceptional thermal stability, and sharpness at high temperatures. TSP cutters enhance drilling efficiency by increasing rates of penetration and extending the lifespan of drill bits, ultimately reducing overall drilling costs.
Specification for TSP
Thermally stable diamond drill bit cutters maintain sharpness at temperatures up to 2000°F and are stronger to withstand drilling impact forces. Drill bits employing the TSP cutters are capable of reducing overall system costs through increasing rates of penetration and bit life.
Shape: Cubes, Cylinders, Discs, Rectangles, Triangles, hemi-Spheres, oval etc.
|
Thermal stable diamond(TSP) cutter specifications
|
||||
|
Cylinder/button shape Diameter x Height x Angle (mm)
|
||||
|
1x1.2x120°
|
1.5x2x120°
|
1.5x4x180°
|
2x4x120°
|
2x4x180°
|
|
3x3x180°
|
3x8x120°
|
3x8x180°
|
4x4x180°
|
4x10x120°
|
|
4x10x180°
|
5x10x120°
|
5x10x180°
|
6x10x120°
|
6x10x180°
|
|
8x3x180°
|
8x5x180°
|
10x0.75x180°
|
10x1x180°
|
10x2x180°
|
|
Rectangle/cube shape Length x Widthx Height (mm)
|
||||
|
1.5x1.5x1.5
|
1.5x1.5x4
|
1.5x1.5x5
|
1.5x1.5x10
|
2.5x2.5x2.5
|
|
3x3x3
|
3x3x10
|
3x5x10
|
3x6x10
|
4x4x4
|
|
4x6x10
|
5x5x5
|
5x5x10
|
10x10x10
|
|
|
Triangle shape Length1 x Length2 x Length3 x Height (mm)
|
||||
|
4x4x4x2.6
|
5x5x5x3
|
6x6x6x3.5
|
6x6x6x4
|
6x6x6x4.5
|
|
Special shape(oval shape) Width x Height x Radius (mm)
|
||||
|
3x3x10xR1.5
|
5x5x10xR3
|
5x10x20xR7
|
|
|
