Metal Bond Diamond Cutting Discs Series

Place of Origin  Zhengzhou China
Trademark BOSDI
Minimum Order   50 Pcs
Delivery Time 3-5 days
Payment Terms T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability 1,000,000 Pcs/ year
Price Nigotiable
Package Carton, Plastic drum/bag, Pallet
Add To Cart Successfully
OK
  • Description
  • Application
  • Product Data
  • Send Email

Product Description

Diamond cutting disc for fuse glass tube and quartz tube

Mainly used for cutting fuse glass tube with small diameter and thin wall thickness, the durability is also good on the condition of keeping good sharpness. Service life will be 45-60days/PC according to customers' feedback. With the features of good shape, high precision, good cutting surface quality during the whole service life.

Copper plated cutting disc

The base surface is plated with copper by handicraft standard, with the features of excellent water and corrosion resistant,and can be customized for the foreign trade companies.

Diamond cutting disc for optical glass

Mainly used for cutting optical glass, can be used for heavy duty deep cutting with high sharpness, vertical cutting angle and long lasting durability.

Diamond cutting disc for valve stem

Mainly used for cutting the valve stem in car engine, with features of high sharpness, high cutting efficiency, long service life and smooth cutting surface.

Product Features

Diamond cutting disc for alumina ceramic

Mainly used for cutting a variety of alumina ceramics and refractory materials, can process the required ceramic sheets, blocks, rods, plates, etc. according to requirements , with the features of sharp cutting, high processing efficiency, good surface finish, and long service life

Diamond cutting disc for zirconia ceramic

We select high-strength imported diamonds and steel base , can provide suitable cutting discs according to customers' requirements. It can be cut continuously without slipping and passivation during the using life, and it also overcomes the disadvantage of short life of resin bond diamond cutting disc. Any size can be customized.

Diamond cutting disc for glass

Glass with the thickness of more than 15mm is hard to be cut by glass knife. This kind of diamond cutting disc is designed for the users who only have manual tool equipment. Glass with the thickness of 15-30mm can be easily cut by only one marble machine or angle grinder( marble machine is much better) , and the cutting is sharp without chipping.

Diamond cutting disc for brake pad grooving

Brake pads are belong to composite materials, which contain metal wires inside, with high toughness,have high demand for blade sharpness. According to the special requirements of the brake pad material, our company has developed a product with the features of moderate sharpness, no sticking to the knife and no chipping. It is very suitable for cutting and grooving brake pad. Any specifications, can be customized

Diamond cutting blade for Circuit board

This product is mainly used for cutting various composite circuit boards ,such as copper-based, rubber-based and plastic-based circuit boards. With the features of good sharp, non-sticky, high precision, good surface quality and extremely high service life. Any specifications,an customized!

Diamond cutting disc for superfinishing stone

superfinishing stone is commonly used for silicon carbide, alumina, diamond, CBN oil stone according to its own abrasives, according to different cutting requirements, we can provide you the suitable products. In order to give you a better cutting experience, we electroplated a layer of diamonds on the surface of the blade to prevent clipping saw and polish section, it can ensure a straight line and a straight angle.

Diamond cutting disc for piezoelectric crystal

Piezoelectric crystal is a valuable material, which needs to be cut vertically. It has high requirements for the sharpness of the saw blade and the material of the base and the connection strength between the work layer and the base. Our company adopts a new process, using a high-strength steel plate to improve the overall rigidity of the blade, to ensure vertical cutting, and improve the customer's yield.

Diamond cutting disc for quartz (high borosilicate glass tube) processing

This product specializes in precision cutting of quartz and borosilicate glass tubes. It has sharp cutting, self-sharpness, good smooth section and long service life. Mainly used in: high borosilicate glass tube, quartz tube, electrodeless lamp, U-tube, electronic cigarette tube, chemical laboratory equipment and other quartz glass shaped products.

Diamond cutting disc for quartz crucible

Mainly used for precision cutting or grooving quartz products, suitable for the following products: quartz glass rod, quartz glass sheet, quartz glass crucible, furnace core rod, quartz glass boat,quartz crucible, etc., With the features of sharp cutting, smooth section and long service life!

Diamond cutting disc for optical glass

Mainly used for optical glass cutting,including camera lens, microscope lens, magnifying lens, telescope lens, spectacle lens and other optical glass. high sharpness, small slit, long life . It can completely replace the imported products. Any specifications can be customized!

Diamond cutting disc for carbide processing

This product is used for processing carbide (cobalt-tungsten alloy Yg8), can provide perfect cutting and slottin for rods and blocks according to customers' needs. With the features of sharp cutting, long service life, smooth cutting surface without breakage. Any specification can be customized!

Diamond cutting disc for glass cup (tea strainer) slotting

Mainly used for slotting tea strainer of glass cup, with the features of sharp cutting , smooth cutting surface, no cracks, no chipping . It can maintain stable sharpness and good cutting life, greatly improve production efficiency and yield for users.

Diamond cutting disc for magnetic materials

This material is a brittle material. Our diamond disc can efficiently cut NdFeB, silicon steel, amorphous, nanocrystalline, ferrite, magnetic powder core and other materials. Any specification can be customized.

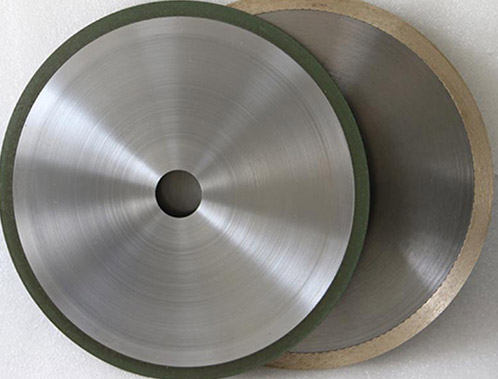

Metal bond diamond cutting discs with steel core is compound of steel plate and bronze bond work layer, the steel plate has high strength and high rigidity. They are generally used for middle and deep cutting and grooving.

The grits are strongly held on, the discs have good wear resistance, long service life and good shape maintenance.

The thickness of work layer is as same as steel plate. They are mainly used for precise grooving and cutting ·The thickness of work layer is higher than the steel plate. They have advantages for removing chips and cooling. They are mainly used for deep cutting and grooving of compoment.

Product Application

Cutting range

Glass materials: various glass tubes, glass spouts, tea filters, high borosilicate, silicate, glass, electronic smoke, hookah, capillary glass tubes, optical glass, quartz glass, crystal glass, gem, crystal, jade, beads, rice beads, acrylic, etc

Ceramic materials: ceramic tile, porcelain, floor tile, pottery, marble, granite, slate, sandstone, black reef stone, etc

Precious materials: polysilicon, polysilicon, magnetic materials (ferrite/NdFeB), optical materials, circuit boards, refractories, silicon boards, etc

Alloy materials: high-speed steel, alloy steel, hard alloy, tungsten wire, tungsten electrode, tungsten rod, titanium alloy, nickel alloy, manganese alloy, etc

Brittle materials: carbide, boron carbide, boron nitride, silicon carbide, brown corundum, zirconium corundum, ceramic corundum, single crystal corundum, etc

Our company can also according to customer needs,all kinds of special-shaped products processing customized.
