Vitrified Resin diamond wheel

Place of Origin Zhengzhou China
Brand Name BOSDI
Craft Sintering
Model Number 350x125x127x10mm
Minimum Order Quantity 5 pcs
Price        Negotiable
Packaging Details       Inner box, Outter carton,Wooden box
Delivery Time      5-7 days
Payment Terms         T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability     10,000 pcs per year
Material Diamond
Add To Cart Successfully
OK
  • Description
  • Application
  • Product Data
  • Send Email

Product Description

Parallel grinding wheel (Model Code: 1A1)

It is mainly used in external grinding, internal grinding, surface grinding, slotting, forming grinding and other grinding processes of cemented carbide, precision ceramics, magnetic materials, thermal spraying alloy and other materials; It has the characteristics of good self sharpening, high grinding efficiency, low surface roughness of machined workpiece, less heating and not easy to burn workpiece.

Product Description

Centerless grinding wheel (model code 9a1 / 6A1)

It is applied to the processing of cemented carbide, precision ceramics, magnetic materials, PCD / PCBN composite sheets and other materials. It is suitable for 1040 / 105010100 series centerless grinding machines; It has high efficiency batch cylindrical grinding and processing, high cylindricity accuracy, good dimensional consistency, and good surface finish of workpieces after fine grinding.

Reinforced grinding wheel (model code 14a1 / 3A1)

It is mainly used in the processing of cemented carbide, CNC cutting tools, ferrite magnetic materials, abrasive steel and other special shape requirements; It has the advantages of sharp grinding, high machining efficiency and easy forming.

Product Application

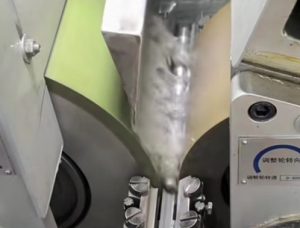

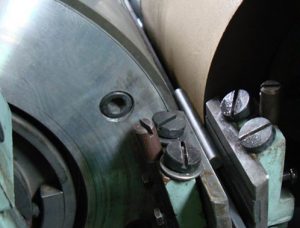

The centerless grinding wheel is a grinding wheel installed on the centerless grinding machine. It interacts with the introduction and the supporting plate to form a grinding method. The workpiece to be processed is supported by the supporting plate. When the guide wheel moves circularly towards the supporting plate to drive the workpiece to rotate, it is ground by the centerless grinding wheel. When grinding the workpiece, the surface quality is high and the precision is relatively high. In grinding, it is also important to select the grinding wheel granularity, Coarse grained centerless grinding wheel is often used for rough grinding, that is to say, it can only process workpieces with low requirements. Generally, in order to speed up the grinding speed, this kind of grinding wheel is used for workpieces with large processing amount. This is because of its fast processing speed, but the workpiece has low finish. On the other hand, the workpiece quality precision of fine grain centerless grinding wheel processing is opposite. Its processing speed is slightly slow, but the finished workpiece is high. If the selected grain size is appropriate, the mirror effect can be achieved. Therefore, the selection of centerless grinding wheel is based on the technical requirements of the workpiece. It also includes the selection of hardness, tissue density and particle size of the grinding wheel.

Vitrified diamond wheel:

Details of the vitrified diamond wheel

Item No.

Out diameter

Mm

Inner diameter

Mm

Ring width

Mm

Ring thickness

Mm

B2500301

150

20/25/32

10/20/30/40/50

6/8/10/15

B2500302

200

20/25/32

10/20/30/40/50

6/8/10/15

B2500303

250

20/25/32

10/20/30/40/50

6/8/10/15

B2500304

300

75/127/203

10/20/30/40/50/125

6/8/10/15

B2500305

350

75/127/203

10/20/30/40/50/125

6/8/10/15

B2500306

400

75/127/203

10/20/30/40/50/125

6/8/10/15

B2500307

500

75/127/203

10/20/30/40/50/125

6/8/10/15



Grinding

Grit

Effect

Application

Rough

P40/60/80/100

Clear scratches

Coarse grinding

half fine

P120/150/180/240

Identifiable scratches

Ordinary grinding

fine

P320/400/600/800

Tiny scratches

Fine grinding

polishing

P1000/1200/1500/2000/3000

No scratches and shining

Polishing

Particle size: grit number is smaller the grit is bigger, the grit mumber is bigger the grit is smaller

We can produce and process diamond grinding wheels of other specifications grinding wheels. However, please inform us of the purpose by email, and we will customize the grinding wheels according to customer requirements.
